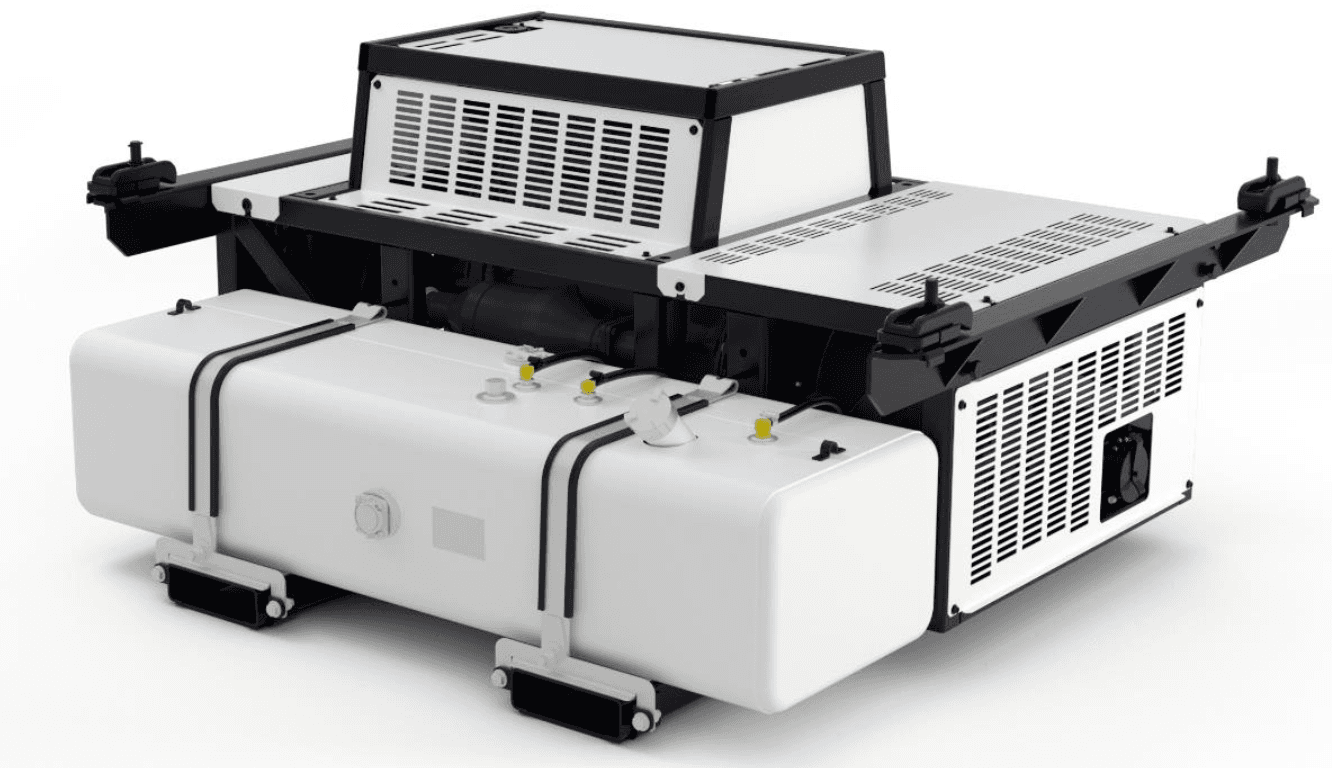

Thermo King SGUM-3500
NewUndermount Two-Speed Generator Set
Chassis-mounted undermount genset with the proven SG-3500 platform. 15 kW output, 24.4 HP Yanmar engine, optional telematics, and 7-year CARB compliance for road operations.
Benefits
Proven Yanmar Diesel
2.1L 4-cylinder direct-injection engine producing 24.4 HP (18.2 kW) at 1800 rpm. Direct-drive fan, no timing belt, designed for 25,000 hours of operation with normal maintenance.
High-Capacity Alternator
190 mm stack length wound-field alternator delivers 14% greater capacity than the previous SG-3000. Supports the high-load compressor start that would stall other gensets.
Robust Long-Life Frame
Fully-automated robotic welding, advanced solvent pre-treatment, and higher-strength low-alloy steel. Frame integrity validated through Multi Axial Shaking Test (MAST) to 1.9 million miles.
SG-3500 Genset Controller
Self-contained microprocessor with CAN bus, variable-speed control, automatic pre-heat, automatic pre-trip, internal diagnostics, hour meter, English/Spanish menus, and exterior USB download port.
Flexible Fuel Tank Options
Standard 50-gallon undermount tank with 30 and 80-gallon optional configurations. Anti-siphon at 30 GPM fill rate, drain plug for purging contaminants.
Optional Telematics
GSM + GPS module with 180-day backup battery. Reports location, fuel level, battery voltage, controller parameters, hour meter, and alarms — even when the genset is powered off.
Unit Specs
Engine
| Type | Compression ignition (Yanmar) |
| Cylinders | 4 |
| Displacement | 2.1 L |
| Horsepower | 24.4 HP (18.2 kW) @ 1800 rpm |
| Torque | 95 Nm @ 1800 rpm |
| Fuel Injection | Direct injection |
| Emissions | EPA Tier IV Final, NRMM Stage V, CARB 7-year |
| Oil Capacity (Wet) | 12 L (12.7 qt) |
| Coolant Capacity | 6.7 L (7.08 qt) |
Generator Output
| Output Power | 15 kW / 18.75 kVA at 60 Hz ISO |
| Voltage | 400 / 460 VAC |
| Phases | 3 |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.8 |
| RPM | 1800 |
| Insulation | Class H per NEMA MG-1-1.65 |
| Receptacle | IEC 60309, 32 A, 3-phase 460 V |
Fuel System
| Fuel | ULSD (max 2,000 ppm), B1–B20 biodiesel |
| Standard Tank | 50 gallons (189 L) |
| Optional Tanks | 30 gal (114 L) or 80 gal (303 L) |
| Anti-Siphon | 30 GPM fill rate |
Dimensions & Weight
| Width | 1,568 mm (61.7 in) |
| Height | 810 mm (31.9 in) |
| Depth | 1,316 mm (51.8 in) |
| Weight (50-gal tank) | 673 kg (1,484 lb) |
| Weight (30-gal tank) | 669 kg (1,474 lb) |
| Weight (80-gal tank) | 680 kg (1,499 lb) |
Capacity & Environment
| Maximum Power Output | 15 kW / 18.75 kVA at 45°C per ISO1496 |
| Structural Range | −40°C to 50°C (−40°F to 122°F) |
| Starting Range | −29°C to 50°C (−20°F to 122°F) |
| Sound Pressure | 70 dBA at 1 m, 45° from exhaust |
Battery
| Type | Maintenance-free 12 VDC |
| BCI Group | 31 |
| Cold Cranking Amps | 925 A at −18°C |
| Charger Output | Solid-state 22 A |
