Thermo KingRefrigerated Trailers

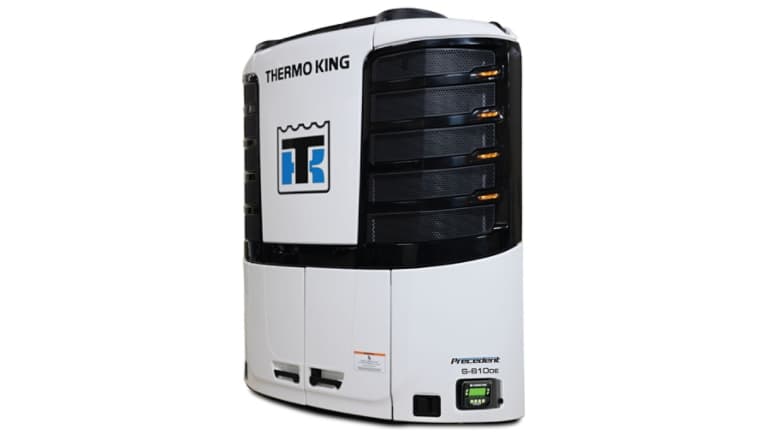

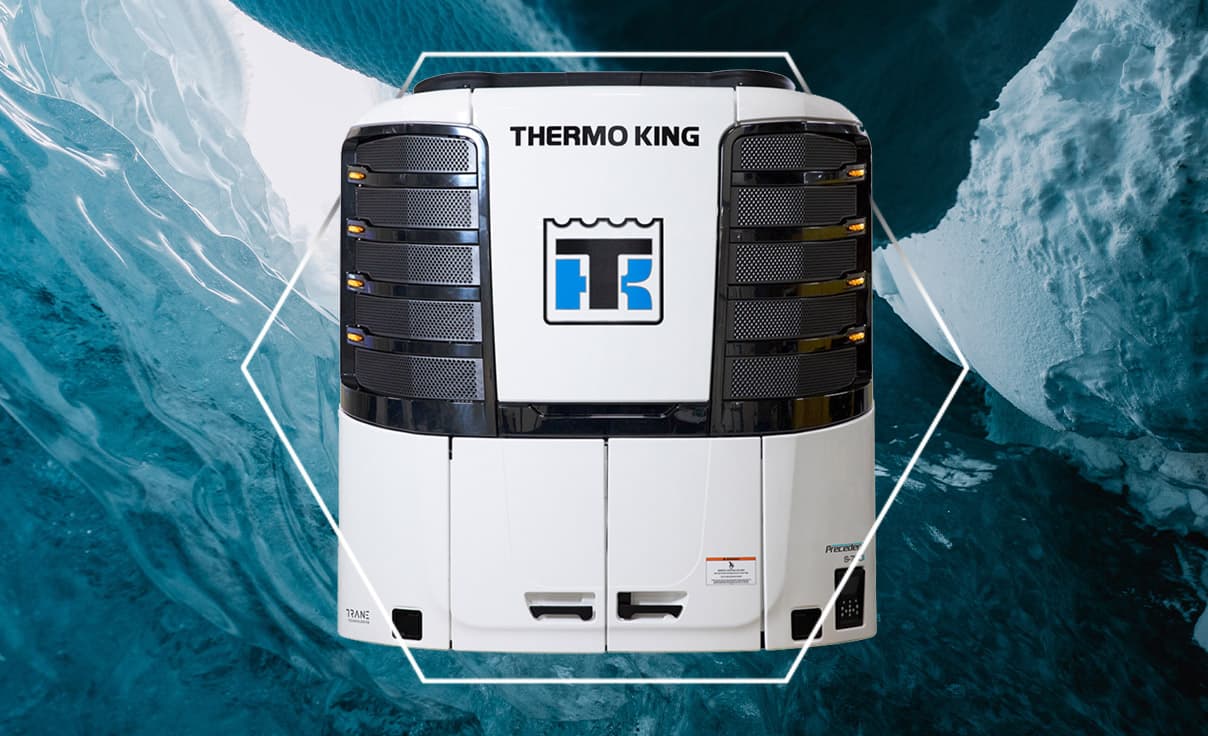

Precedent S-610DE
NewTwo separate temperature zones in one trailer
The Precedent S-610DE is a multi-temp reefer unit designed for food distribution, allowing for two separate temperature zones in one trailer without adding remote evaporators. It is CARB Evergreen compliant, eliminating the need for a DPF.
Precedent S-610DE: Optimized for Food Distribution
The Precedent multi-temp reefer platform from Thermo King takes the technology that has made Precedent the premier transport refrigeration platform in the industry and optimizes it for food distribution. The S-610DE allows for two temperature zones in one trailer without adding remote evaporators, plus it is CARB Evergreen, so no DPF will ever be needed.
Benefits
New Condenser Grilles
The new grilles not only provide improved protection from road debris that can impact the condenser coil, but also a stronger, more integrated look for the unit.
Controller
Smart Reefer® 4 (SR-4) control system, temperature data logger, ServiceWatch and Optiset® Plus enabled, running and pretrip diagnostics, integrated USB port, and proprietary eco-pulldown technology.
Integrated Telematics
Factory equipped with 24 months complimentary TracKing® Telematics.
Composite Doors
Composite long-life door panels with auto-latch and auto secondary latch on front doors.
X430P Reciprocating Compressor
4 cylinder, 30 cubic inch with 4 quart oil sump, forged steel connecting rods with barring inserts and discharge valves incorporating slug relief springs, integrated internal oil filter, 14.5 lbs. of R452A refrigerant.
37 Amp Extended Life Alternator
65 amp alternator and 30 amp battery charger optional.
12 Volt Charging
Multiple options in both alternator and battery charger configurations.
Generator
Totally Enclosed Fan Cooled (TEFC) 5.25 KW rated output, fully potted and protected stator windings, IP55 rated.
Evaporator Motor
Totally Enclosed Air Over (TEAO), two-speed operation with up to 3350 CFM due to Smooth Air Blower technology.
Remote Evaporators
Supports 1, 2, and 3 zone operation with up to four (4) remote evaporators.
Unit Specs
Refrigeration Capacity (System net cooling capacity at 100°F ambient and high-speed engine operation)
| 35°F (Engine Power w/ ETV) | 58,000 BTU/hr (16,999 Watts) |
| 35°F (Electric Power) | 44,000 BTU/hr (12,896 Watts) |
| 0°F (Engine Power w/ ETV) | 30,000 BTU/hr (8,792 Watts) |
| 0°F (Electric Power) | 28,000 BTU/hr (8,206 Watts) |
| -20°F (Engine Power w/ ETV) | 18,000 BTU/hr (5,275 Watts) |
| -20°F (Electric Power) | 17,000 BTU/hr (4,982 Watts) |
Heating Capacity (System net heating capacity at 35/0°F ambient)
| Engine Power w/ ETV | 39,000 BTU/hr |
Airflow Capacity
| Volume at 0 Pa static pressure (Combined zone 1 + zone 2) | 2,850 ft³/min |
Engine
| Model | TK488CR (Four cylinder, direct injection, liquid cooled) |
| RPM at High Speed | 2,050 RPM |
| RPM at Low Speed | 1,250 RPM |
| HP Rating at 2,050 RPM | 33 HP |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs/4,000 hrs |
Compressor
| Model | X430L (lightweight aluminum alloy body, heads and sump) |
| Displacement | 30.0 in³ |
Refrigerant
| Type | R452A (Zero Ozone Depletion Potential (ODP), internationally approved) |
| Charge | ~17 lbs |
Weight (Wet with battery)
| System | 1,935 lbs |
| 50 gallon fuel tank (with bracket) | 76 lbs |
Documentation & Spec Sheets
Download brochures, specification sheets, and operator manuals for the Precedent S-610DE.
