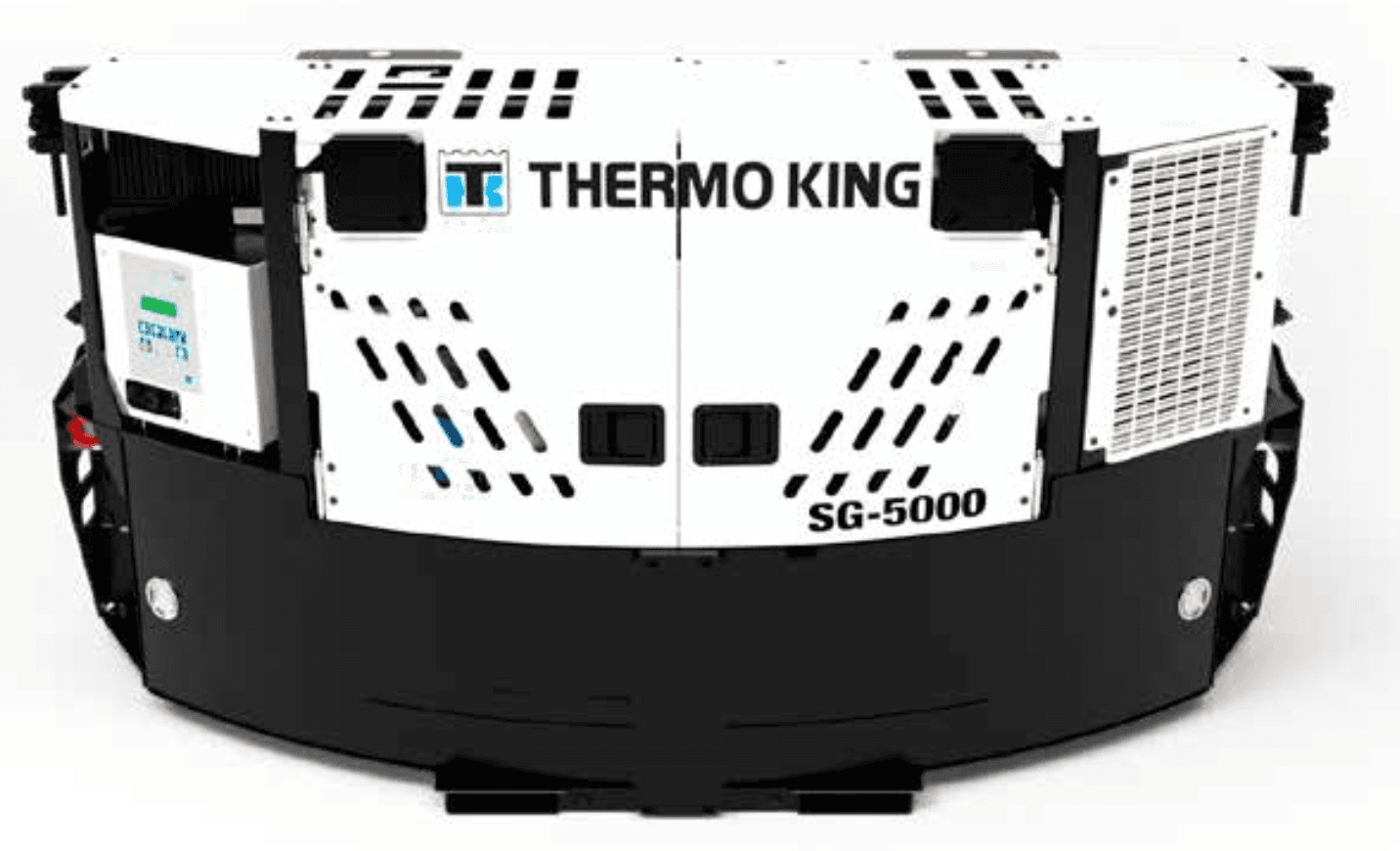

Thermo King SGCO-5000c
NewCARB-Compliant Clip-On Generator Set
Clip-on container generator set with the SG-5000c platform. Lifetime CARB compliant, 15 kW output, 120-gallon tank, and standard telematics for full fleet visibility.
Benefits
Lifetime CARB Compliance
Compliant with ULETRU requirements for over-25 HP engines under section 2477 of California Code of Regulations. CARB certification issued under Executive Order U-R-028-0900 for 2023 model-year engines.
Common-Rail Diesel Engine
4-cylinder, 2.2L compression-ignition engine producing 29.4 HP (21.9 kW) at 1800 rpm with 116 Nm of torque. Common-rail direct injection delivers reliable starting and clean combustion.
DOC After-Treatment
Diesel Oxidation Catalyst exhaust system meets CARB and EPA Tier IV Final requirements without the maintenance burden of a Diesel Particulate Filter.
SG-5000c Genset Controller
Self-contained microprocessor with CAN bus, variable-speed operation for fuel savings, automatic pre-trip, internal diagnostics, hour meter, multilingual menus, and a USB download port.
Standard Telematics
GSM + GPS antenna with internal backup battery (180-day life at one report per day). Reports location, fuel level, controller parameters, hour meter, and alarms whether the genset is on or off.
Marine-Grade Construction
Stainless-steel hardware, multi-stage solvent and chemical pre-treatment, polyester TGIC powder-coat finish. Validated to 1,000-hour salt spray test (ASTM B-117) with no blisters or rust.
Unit Specs
Engine
| Type | Compression ignition |
| Cylinders | 4 |
| Displacement | 2.2 L |
| Horsepower | 29.4 HP (21.9 kW) @ 1800 rpm |
| Torque | 116 Nm @ 1800 rpm |
| Fuel Injection | Common-rail direct injection |
| After-Treatment | DOC (no DPF) |
| Emissions | CARB + EPA Tier IV Final |
| Oil Capacity (Wet) | 12 L (12.7 qt) |
| Coolant Capacity | 6.7 L (7.08 qt) |
Generator Output
| Output Power | 15 kW / 18.75 kVA at 60 Hz ISO |
| Voltage | 400 / 460 VAC |
| Phases | 3 |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.8 |
| RPM | 1800 |
| Insulation | Class H per NEMA MG-1-1.65 |
| Receptacle | IEC 60309, 32 A, 3-phase 460 V |
Fuel System
| Fuel | ULSD (max 15 ppm sulfur), B1–B20, HVO compatible |
| Tank Capacity | 120 gallons (454 L) |
| Filtration | Dual-stage with integrated water separator |
| Anti-Siphon | 30 GPM fill rate |
Dimensions & Weight
| Width | 2,321 mm (91.3 in) |
| Height | 1,181 mm (46.5 in) |
| Depth | 753 mm (29.6 in) |
| Dry Weight (120 gal) | 857 kg (1,890 lb) |
| Fueled Weight (120 gal) | 1,238 kg (2,730 lb) |
Capacity & Environment
| Maximum Power Output | 15 kW / 18.75 kVA at 45°C per ISO1496 |
| Structural Range | −40°C to 50°C (−40°F to 122°F) |
| Starting Range | −29°C to 50°C (−20°F to 122°F) |
| Sound Pressure | 70 dBA at 1 m, 45° from exhaust |
Battery
| Type | Maintenance-free 12 VDC |
| BCI Group | 31 |
| Cold Cranking Amps | 925 A at −18°C (0°F) |
| Dimensions | 330 × 173 × 238 mm |
Documentation & Spec Sheets
Download brochures, specification sheets, and operator manuals for the Thermo King SGCO-5000c.
