Minotaur DL550

Part monster, one part amazing. The CASE Minotaur™ DL550 tackles more jobs and makes you more money.

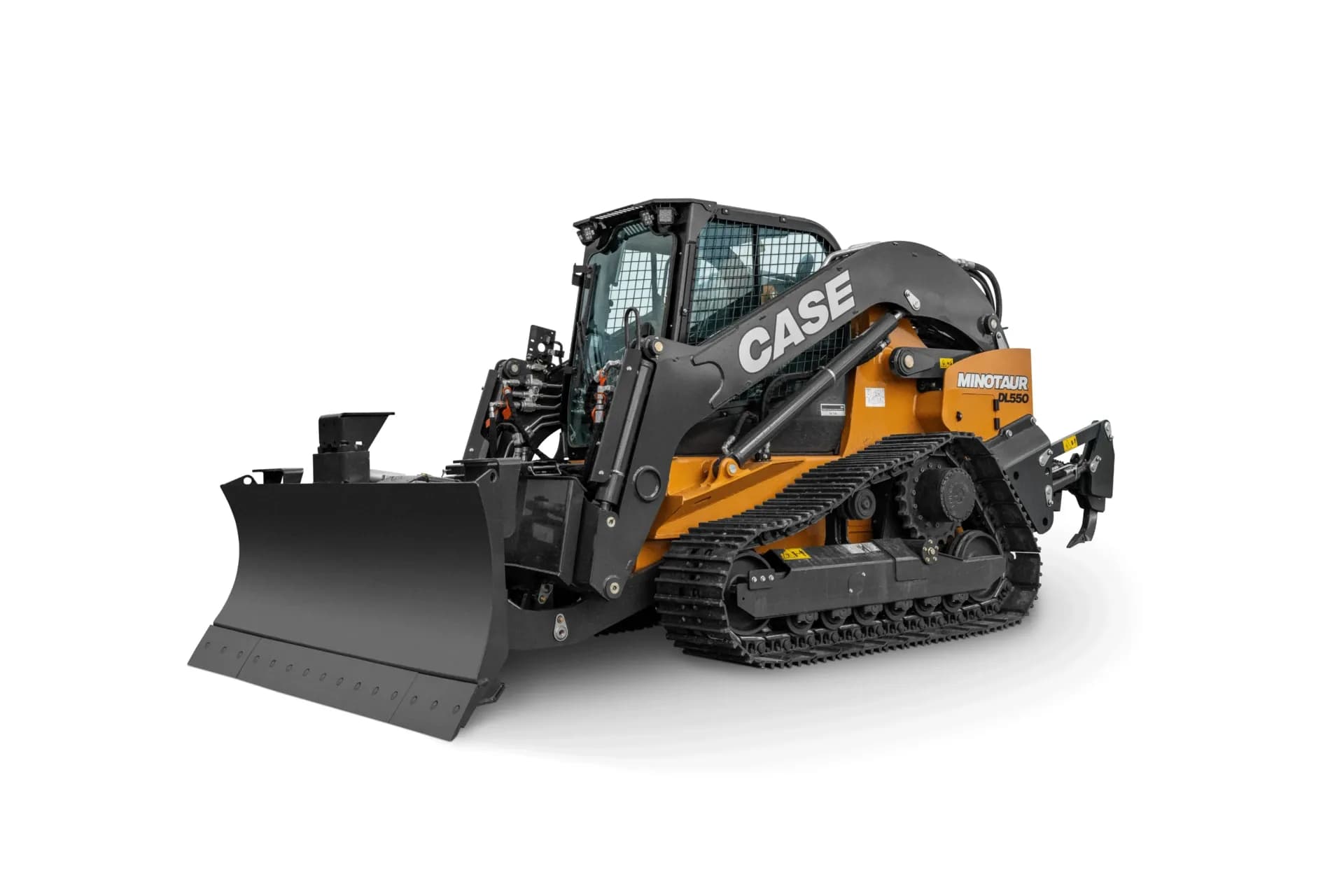

The CASE Minotaur™ DL550 is a compact dozer loader that combines the power of a dozer with the versatility of a compact track loader, offering exceptional drawbar pull, breakout force, and operating capacity.

114 hpHorsepower18,600 lbOperating Weight25,000+ lbs.Drawbar Pull5,500 lbROC

Request a Quote

Horsepower

114 hp

Operating Weight

18,600 lb

Drawbar Pull

25,000+ lbs.

Rated Operating Capacity

5,500 lb

Hydraulic Flow

41.6 gpm EHF

Overview

Take a Closer Look

Take a quick tour and get a good look at the features that make the Minotaur™ DL550 compact dozer loader the kind of versatile, highly productive, construction-grade workhorse that tackles more jobs and makes you more money from the minute you fire it up.

Exceptional power with 114 hp and over 25,000 lbs. of drawbar pull.
High versatility with integrated C-frame dozer blade and skid steer-style coupler.
Enhanced high-flow hydraulics for powering larger implements.
Operator comfort and control with dozer-style controls and optional ISO switch.
Multiple track options and optional integrated rear ripper for diverse applications.

Features

Explore Minotaur DL550 Features

Specifications

Minotaur DL550 Specs

Unmatched Power

114 hp engine for robust performance.
Over 25,000 lbs. of drawbar pull for tough applications.
More than 12,000 lbs. of breakout force.

Dozer-Grade Versatility

Integrated C-frame dozer blade with 52°-60° variable pitch.
Skid steer-style coupler for easy attachment changes.
Standard enhanced high-flow hydraulics for larger implements.

Advanced Control

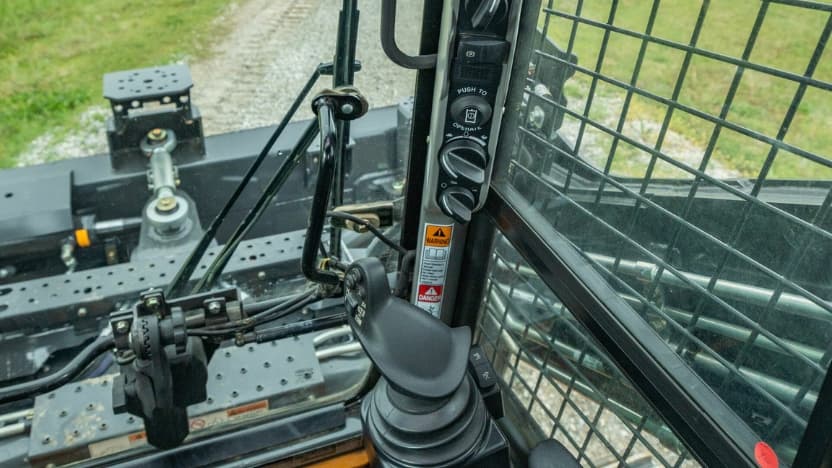

Dozer-style controls and grips with optional ISO switch.
Creep Speed Mode for precision work.
Blade Guidance Ready for enhanced accuracy.

Specifications

Performance

Horsepower114 hp | 85 kW

Operating Weight18,600 lb | 8 444 kg

Drawbar PullMore than 25,000 lbs.

Breakout ForceMore than 12,000 lbs.

Rated Operating Capacity (50% of tipping load)5,500 lb

Hydraulics

Auxiliary Hydraulics@ 3,450 psi (238 bar) – 24.2 gpm (91.5 L/min)

High-Flow Auxiliary Hydraulics@ 3,450 psi (238 bar) – 41.6 gpm (157 L/min)

Enhanced High-Flow Auxiliary Hydraulics (EHF)@ 4,100 psi (283 bar) – 41.6 gpm (157 L/min)

Auto Ride ControlStandard

Creep Speed ModeStandard

Blade

Variable Pitch52° - 60°

ControlSingle lever for lift, angle and tilt

Blade Guidance ReadyStandard

Loader

Attachment CouplerHydraulic

Lift GeometryVertical lift

Lift Arm Support PinStandard

Undercarriage

TracksHeavy Duty Steel Tracks

Track ChainSealed and Lubricated Track Chain (SALT)

Operator Environment (Standard)

CabEnclosed cab (ROPS/FOPS Level 1)

Climate ControlHeater and air conditioner

Optional Equipment

Operator EnvironmentOpen Cab (ROPS/FOPS Level 1) w/ side screens; Keyed Start Mechanical Suspension Seat - Vinyl; Demolition cab door with polycarbonate

Rear Mounted EquipmentRipper - 5 position with 3 shanks; Replaceable Ripper Teeth; Drawbar
