TR270B
The compact track loader that makes it all easier.

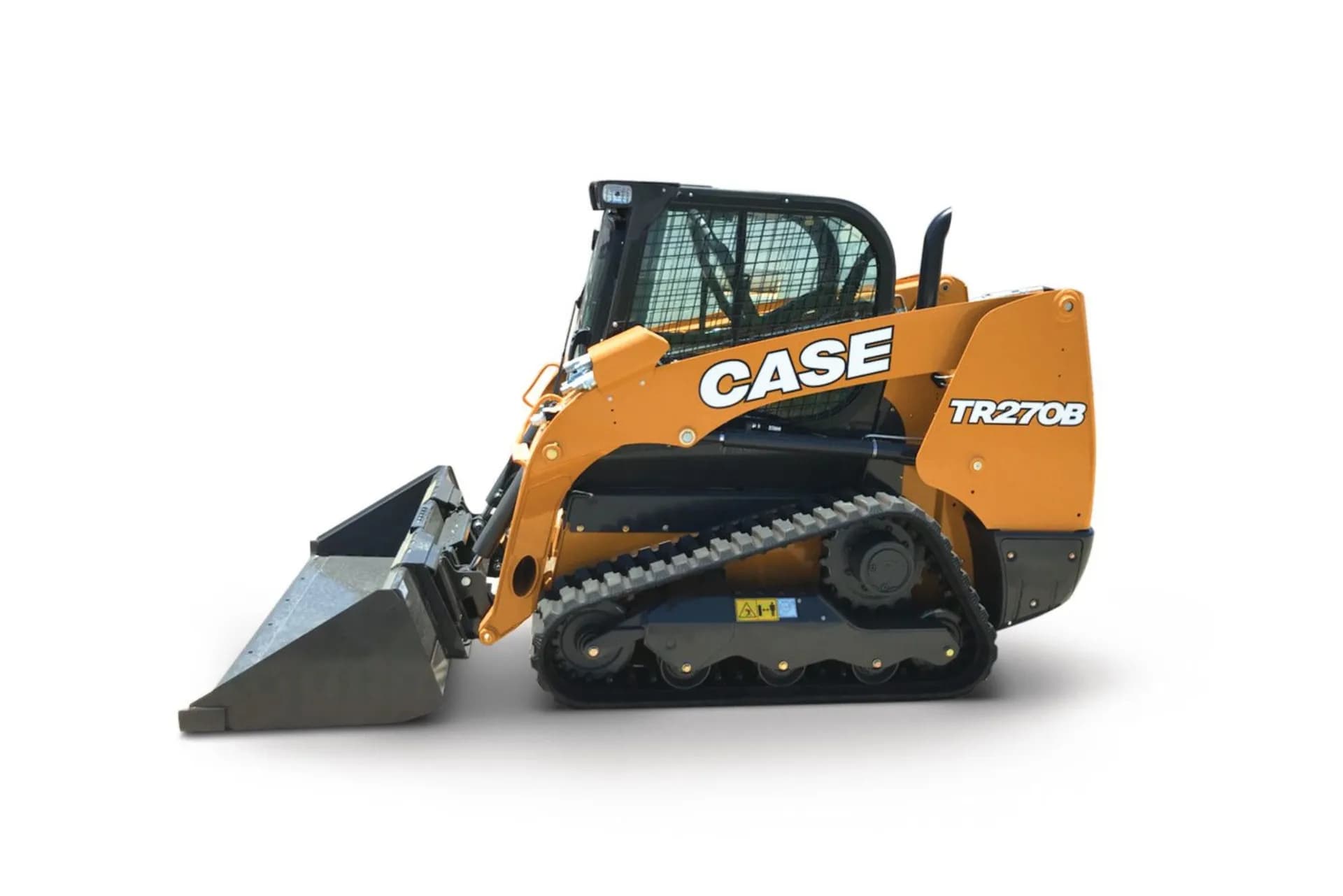

The CASE TR270B Compact Track Loader is easy to transport and simple to operate, featuring streamlined joystick controls and an 8-inch LCD display for critical information.
74 hpHorsepower8,270 lbOperating Weight2,700 lbRated Operating Capacity232 lb·ftPeak Torque
Horsepower
74 hp
Operating Weight
8,270 lb
Rated Operating Capacity
2,700 lb
Emissions
Tier 4 Final
Overview
STANDOUT FEATURES
Explore the unique features of the simple to operate TR270B.
Features
Explore TR270B Features
Specifications
TR270B Specs
Powerful Performance
- 74 hp engine makes digging and loading a snap.
- Radial lift geometry for strong digging performance.
- Optional high-flow auxiliary hydraulics for demanding attachments.
Easy Maneuverability
- Low ground pressure for minimal turf disturbance.
- Compact size for easy transport and access to tight spaces.
Specifications
Engine
ModelFPT F5H FL463 A*G001
Displacement207 CID (3.4 L)
TypeTurbo Tier 4 Final Certified Diesel Oxidation Catalyst (DOC)
Gross Horsepower74 hp (55 kW)
Net Horsepower68 hp (51 kW)
Peak Torque232 lb·ft (314 N·m)
Hydraulics
Auxiliary Hydraulics3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
High-Flow Auxiliary Hydraulics (Optional)3,050 psi (210 bar) – 32.4 gpm (122.6 L/min)
Loader
Attachment CouplerManual
Lift GeometryRadial
SAE Operating Load2,700 lbs
Tipping Load5,400 lbs
Operating Capacity
Rated Operating Capacity (50% of Tipping Load)2,700 lb (1 225 kg)
Cab & Comfort
Built for the Operator
Operator Comfort & Control
- Streamlined joystick controls with trigger switches and convenient buttons.
- 8-inch LCD Multi-Function Display for critical information.
- Roomy cab with easy entry and exit.
- Optional enclosed cab with full sealing and pressurization.
- Optional deluxe cloth, air suspension seat with heater and lumbar support.
Gallery

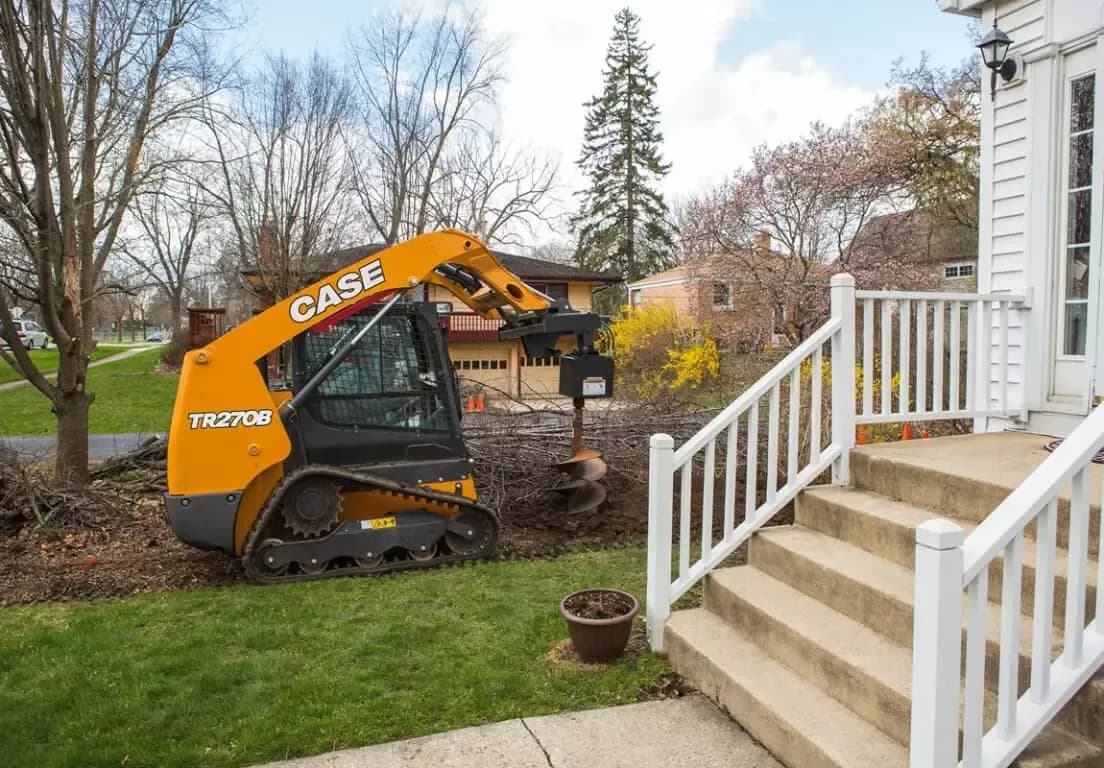

See the TR270B in Action
Get Started
Request a Quote
Tell us what you're looking for and a local Sonsray representative will reach out to you promptly with pricing and availability.
- No obligation — just honest answers from equipment experts.
- Fast response from your nearest Sonsray location.
- Factory pricing, financing options, and trade-in evaluation available.
- We carry new, used, and demo equipment across all brands.
Prefer to Talk?
