SVL65-2

Name: SVL65-2
Brand: Kubota
Availability: InStock

Dominate the job with nimble maneuverability, power, and comfort.

Dominate hardscaping and landscaping jobs with the Kubota SVL65-2, offering nimble maneuverability, power, and comfort. Its advanced hydraulics and 68.3 horsepower ensure you can tackle any challenge.

68.3 HPHorsepower8,135 - 8,631 lbsOperating Weight2,100 lbsRated Operating Capacity4,614 lbfBucket Breakout Force

Request a Quote

Horsepower

68.3 HP

Operating Weight

8,135 - 8,631 lbs

Rated Operating Capacity

2,100 lbs

Bucket Breakout Force

4,614 lbf

Height to Hinge Pin

118.5 in

Overview

Unmatched Performance and Comfort

The Kubota SVL65-2 is engineered to deliver exceptional performance and operator comfort, making it the ideal choice for demanding construction and landscaping tasks. With its powerful engine, advanced hydraulic system, and thoughtfully designed cab, you can work efficiently and comfortably all day long.

Experience nimble maneuverability and power for various job sites.
Advanced hydraulics and 68.3 HP ensure you can tackle tough challenges.
Enjoy superior comfort with a wide cab entrance and high-back seat.
Achieve smooth, precise control with the Advanced Multifunction Valve and hydraulic pilot controls.
Benefit from a rugged, integrated design for enhanced durability and stability.

Features

Explore SVL65-2 Features

Specifications

SVL65-2 Specs

Advanced Hydraulics

Advanced Multifunction Valve for smooth simultaneous operation.
Run AUX hydraulics, bucket, and loader arm functions without stalling.
Electronic Travel Torque Management prevents engine stalling for faster recovery.

Powerful Maneuverability

68.3 horsepower engine for dominating tough jobs.
Standard 2-Speed Travel to get the job done faster.
Selectable One-Way Self-Leveling keeps attachments horizontal during lifting.

Rugged Durability

Integrated mainframe and undercarriage for a sturdier design.

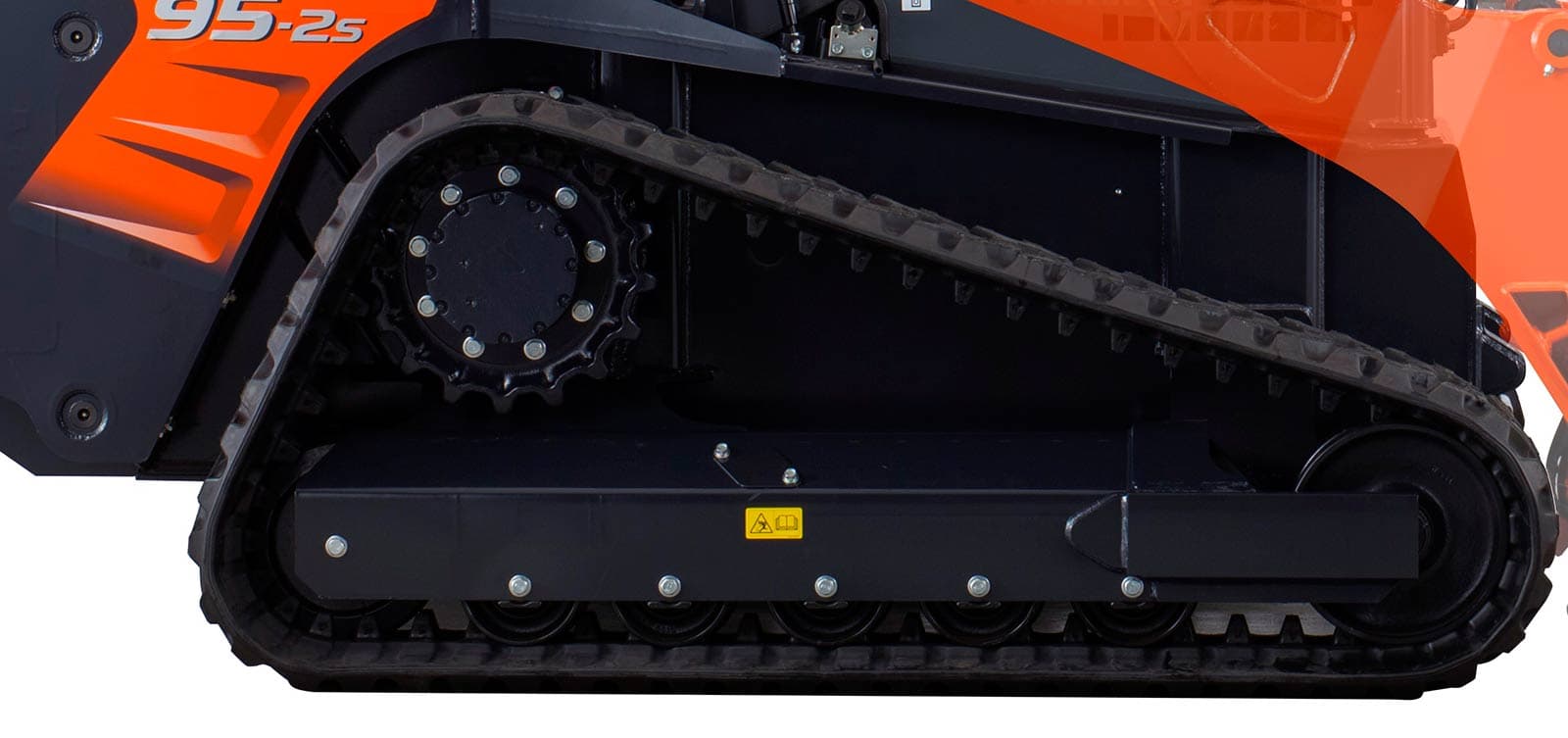

Welded undercarriage with no exposed hoses for enhanced durability.

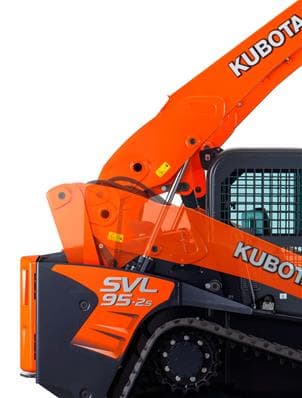

Robust and tightly secured loader arms linkage for radial and vertical lift.

Specifications

Engine

Horsepower (gross)68.3 HP

Displacement159.6 cu. in. (2615 cc)

Dimensions

Overall Length136.4 in (3465 mm)

Overall Height79.9 in (2029 mm)

Overall WidthVehicle Width With Bucket: 68 in (1727 mm) / 74 in (1880 mm)

Ground Clearance9.1 in (233 mm)

Track Width (standard/wide)12.6 in (320 mm) / 15.0 in (380 mm)

Track Ground Contact Length57.9 in (1470 mm)

Height to Hinge Pin118.5 in (3009.9 mm)

Performance

Operating Weight8135 lbs (3690 kg) / 8631 lbs (3915 kg)

Rated Operating Capacity (ROC)2100 lbs (953 kg) (35% Tipping Load)

Tipping Load6000 lbs (2722 kg)

Bucket Breakout Force4614 lbf (2093 kg)

Lift Arm Breakout Force4266 lbf (1935 kg)

Lift Arm PathVertical

Ground Contact PressureStandard: 5.0 psi (34.5 kPa) / Wide: 4.2 psi (30 kPa)

Traveling Speed: High7.1 mph (11.5 kph)

Traveling Speed: Low4.9 mph (7.8 kph)

Traction Force8406 lbf (3813 kgf)

Hydraulics

Auxiliary Hydraulic Pressure3263 psi (229.4 bar)

Auxiliary Hydraulics Flow Rate17.4 GPM (65.8 LPM) / 27.0 GPM (102.2 LPM)

Undercarriage

Track Rollers (per side)4

Operator Station

Operator StationOpen cab / closed cab

Cab & Comfort

Built for the Operator

Operator Comfort

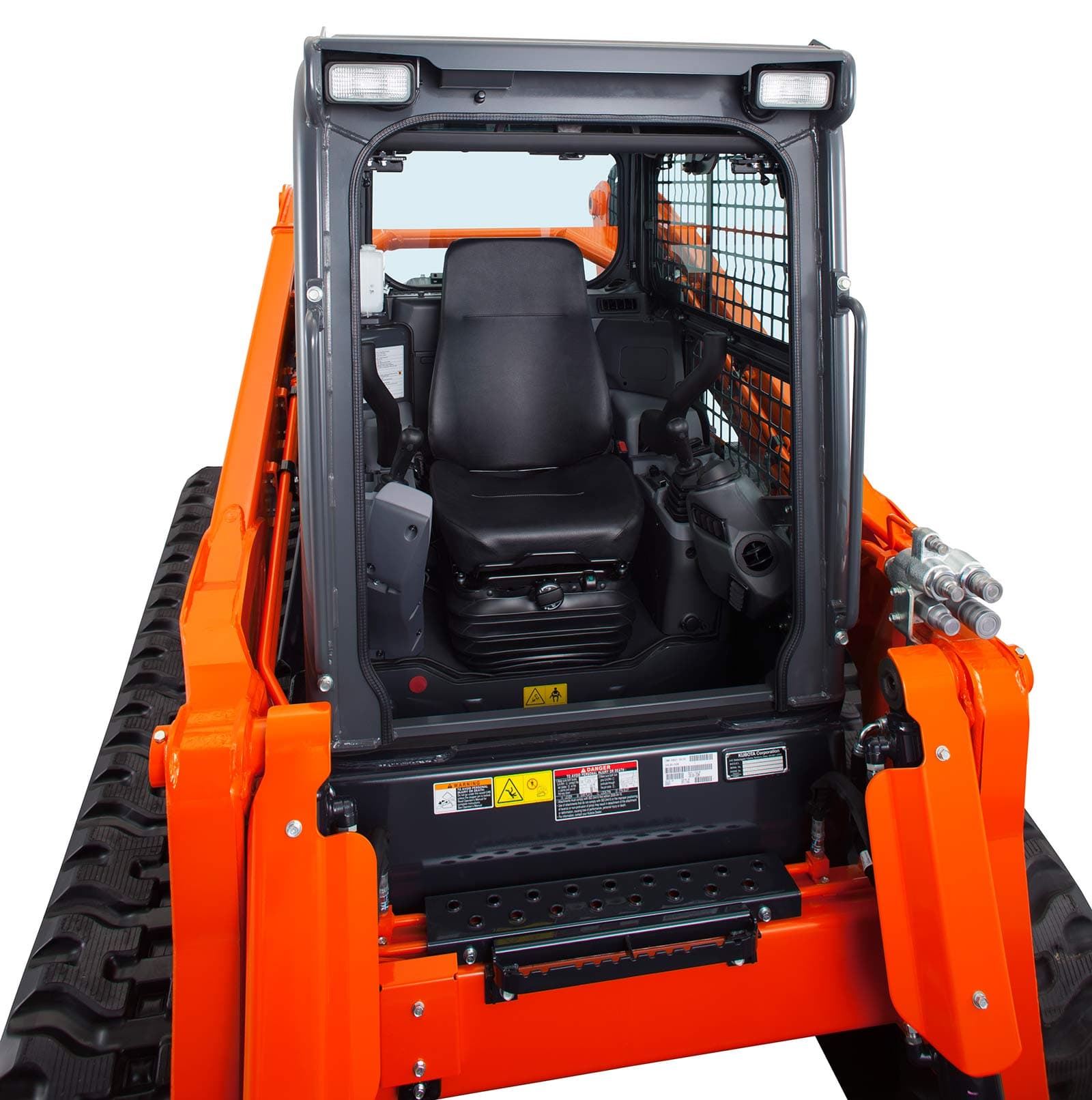

Wide cab entrance (36” side-screen to side-screen width) for comfortable pivoting.
High back seat provides excellent back support.

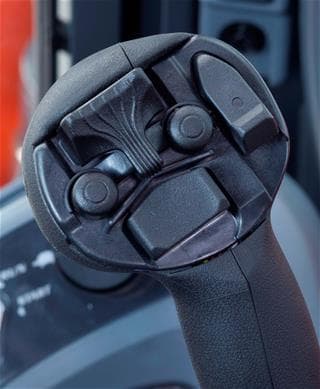

Available Low Effort Hydraulic Pilot Controls for maximum feel and precision.
