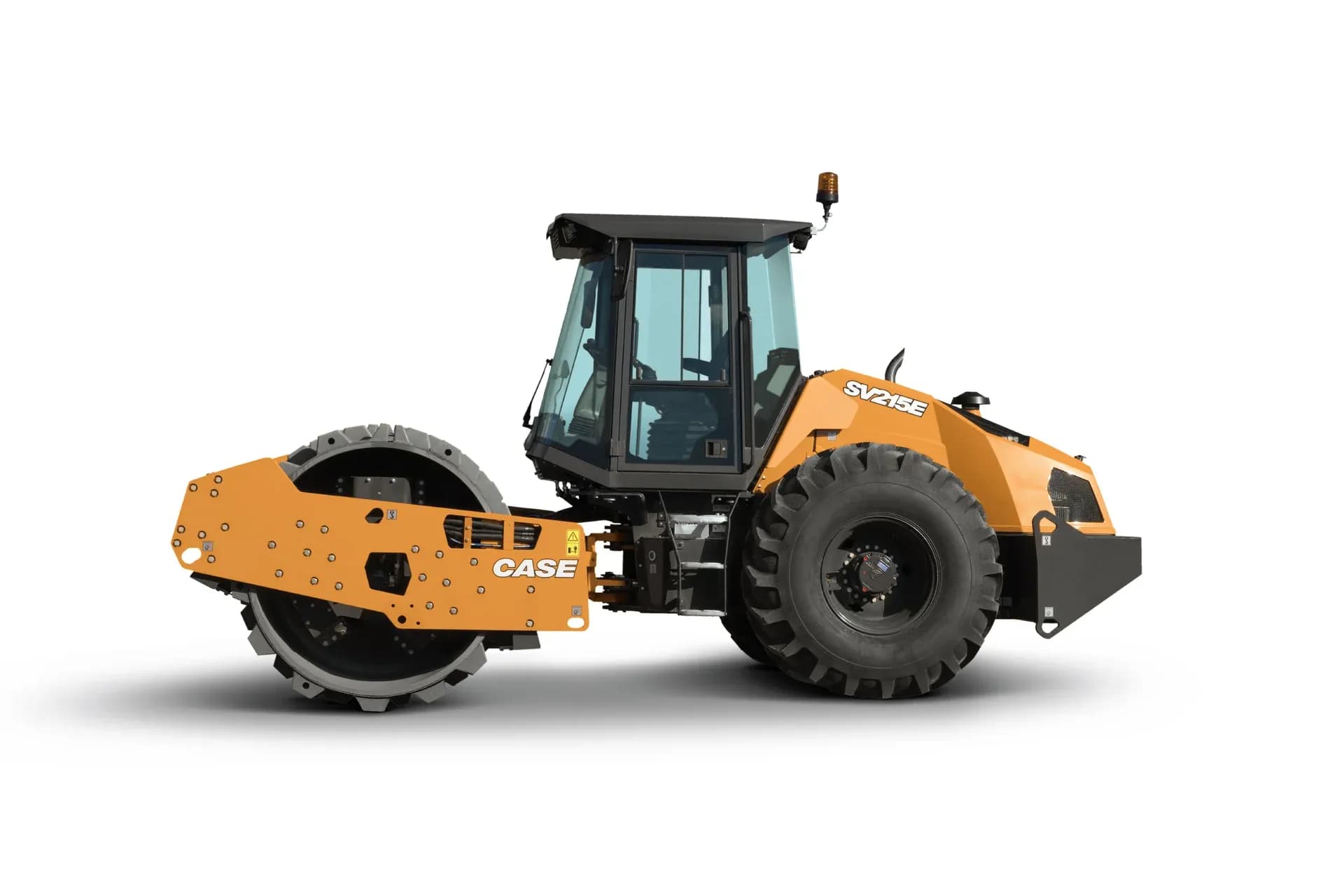

SV215E
Big-footed brute with impressive stomping power.
The CASE SV215E is a powerful single-drum vibratory roller designed for heavy-duty soil compaction, offering impressive stomping power and efficient deep lift compaction.
154 HPHorsepower33,280 lbOperating Weight73,063 lbCentrifugal Force
Centrifugal Force
Up to 73,063 lbs
Gradeability
Up to 67%
Vibration Control
Dual amplitude & frequency
Overview
Take a Closer Look
Take a quick tour and get a good look at the features and technology that make the SV215E the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable cab.
- Compact deeper lifts faster in fewer passes.
- Take on the steepest grades, up to 67%, thanks to a lower center of gravity.
- Comfortable and spacious cab with great visibility and intuitive controls.
Features
Explore SV215E Features
Specifications
SV215E Specs
Powerful Compaction
- Centrifugal forces up to 73,063 lbs for heavy-duty soil compaction.
- Standard dual amplitudes and dual frequencies for versatile performance.
- Compacts deeper lifts faster in fewer passes.
Steep Grade Capability
- Lower center of gravity allows for tackling grades up to 67%.
- Oscillating articulated roller joint maintains consistent drum-to-ground contact.
Specifications
Performance
Horsepower154 hp | 115 kw
Operating Weight33,280 lb | 15 095 kg
Centrifugal ForceUp to 73,063 lbs
GradeabilityUp to 67%
Standard Equipment
ProtectionROPS and FOPS protection
DriveHydrostatic drive for both drum and wheels
DrumSteel drum scrapers
TiresDiamond tread tires
ConnectivityTelematics ready
Tow PointsFront and rear tow points
Vibration ControlAuto vibration control
Vibration AmplitudeDual amplitude vibration
Vibration FrequencyDual frequency vibration
Optional Equipment
Traction ControlAutomatic Traction Control (ATC) with HX Drive propulsion system (Standard on Padfoot models)
BladeLeveling Blade
Padfoot KitPadfoot shell kit w/ scrapers
CabPressurized cab with heat, ventilation, air conditioning and radio ready
TiresTraction Tread tires
Compaction IndicatorACI Eco - Analog Compaction Indicator
Intelligent CompactionACE Force Intelligent Compaction (Cab only)
Work LightsExtra front work lights (Smooth Drum only)
Telematics
SystemmyCASEConstruction – includes hardware and a 7-yr Advanced data subscription
Cab & Comfort
Built for the Operator
Operator Environment
- Comfy and spacious cab design.
- Adjustable seat for personalized comfort.
- Great visibility for enhanced safety and productivity.
- Intuitive LED display for easy operation.
Gallery

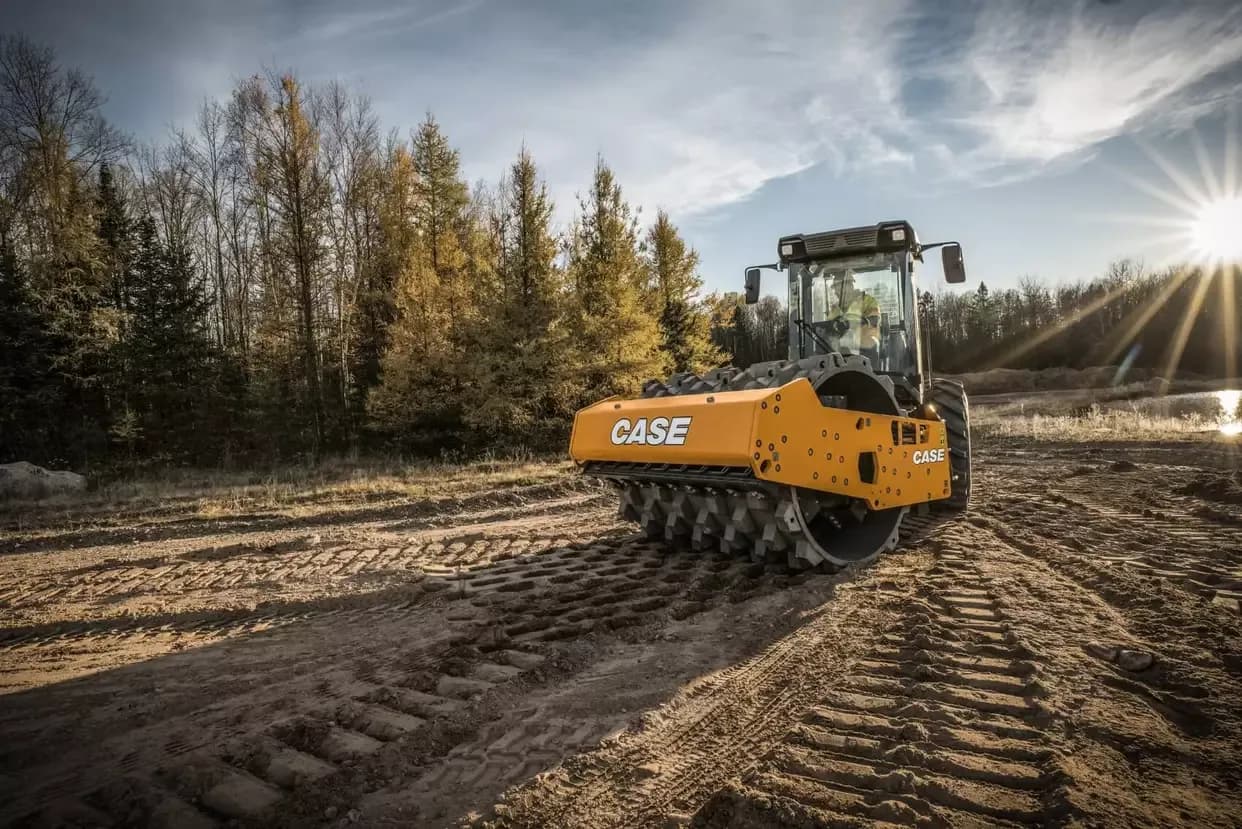

See the SV215E in Action
