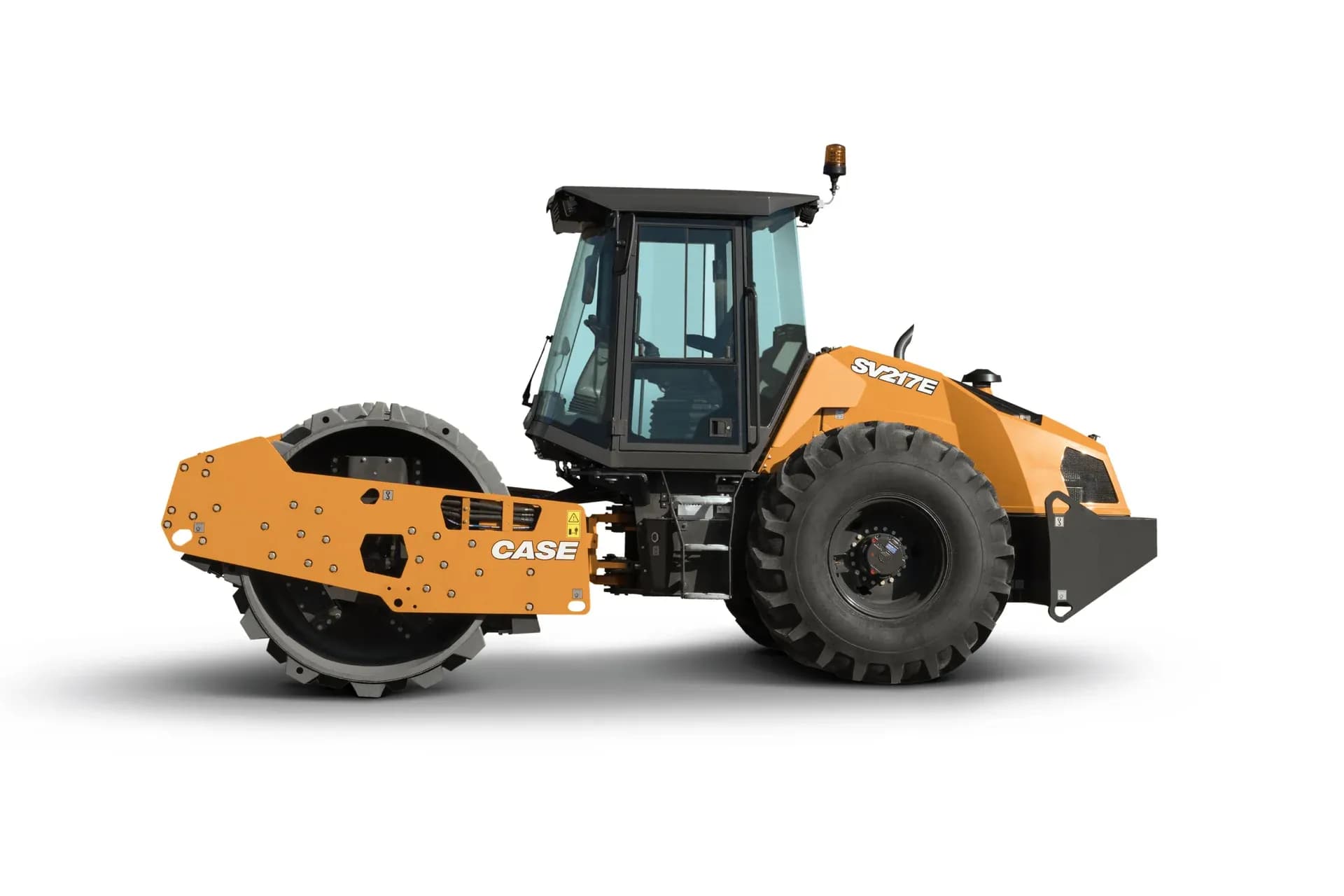

SV217E
Maximum Compacting Power for the Toughest Jobs
The CASE SV217E single-drum vibratory roller delivers maximum compacting power with nearly 75,000 lbs. of centrifugal force, making it ideal for tamping down rough terrain.
154 hpHorsepower36,500 lbOperating Weight75,000 lbCentrifugal Force58%Max Gradeability
Centrifugal Force
Nearly 75,000 lbs.
Gradeability
Up to 58%
Operating Weight
36,500 lb
Horsepower
154 hp
Overview
Take a Closer Look at the SV217E
Take a quick tour and get a good look at the features and technology that make the SV217E the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable cab.
- Achieve maximum compacting power with nearly 75,000 lbs. of centrifugal force.
- Compact on grades up to 58% thanks to an innovative axle-free design.
- Ensure consistent drum-to-ground contact with an oscillating articulated roller joint.
- Experience superior operator comfort and visibility in a spacious, intuitive cab.
Features
Explore SV217E Features
Specifications
SV217E Specs
Maximum Compacting Power
- Delivers nearly 75,000 lbs. of centrifugal force for effective compaction.
- Handles rough terrain with ease, ensuring thorough tamping.
Superior Gradeability
- Axle-free design allows for compaction on grades up to 58%.
- Engine sits lower for enhanced stability on inclines.
Consistent Drum Contact
- Oscillating articulated roller joint maintains optimal drum-to-ground contact.
- Drum design reduces drift for more uniform compaction.
Specifications
Performance
Horsepower154 hp | 115 kw
Operating Weight36,500 lb | 16 555 kg
Centrifugal ForceNearly 75,000 lbs.
GradeabilityUp to 58%
Standard Equipment
ProtectionROPS and FOPS protection
Drive SystemHydrostatic drive for both drum and wheels
DrumSteel drum scrapers
TiresDiamond tread tires
ConnectivityTelematics ready
Tow PointsFront and rear tow points
Vibration ControlAuto vibration control
Vibration AmplitudeDual amplitude vibration
Vibration FrequencyDual frequency vibration
Optional Equipment
Traction ControlAutomatic Traction Control (ATC) with HX Drive propulsion system (Standard on Padfoot models)
AttachmentsLeveling Blade, Padfoot shell kit w/ scrapers
Cab FeaturesPressurized cab with heat, ventilation, air conditioning and radio ready - antenna and 2 speakers/no radio
TiresTraction Tread tires
Compaction IndicatorsACI Eco - Analog Compaction Indicator, ACE Force Intelligent Compaction (Cab only), ACE Force Printer (Cab only)
LightingExtra front work lights (Smooth Drum only)
TelematicsmyCASEConstruction – includes hardware and a 7-yr Advanced data subscription
Cab & Comfort
Built for the Operator
Operator Environment
- Spacious and comfortable cab design.
- Intuitive controls for easy operation.
- Adjustable, swiveling seat for personalized comfort.
- Excellent visibility to the entire jobsite.
Gallery

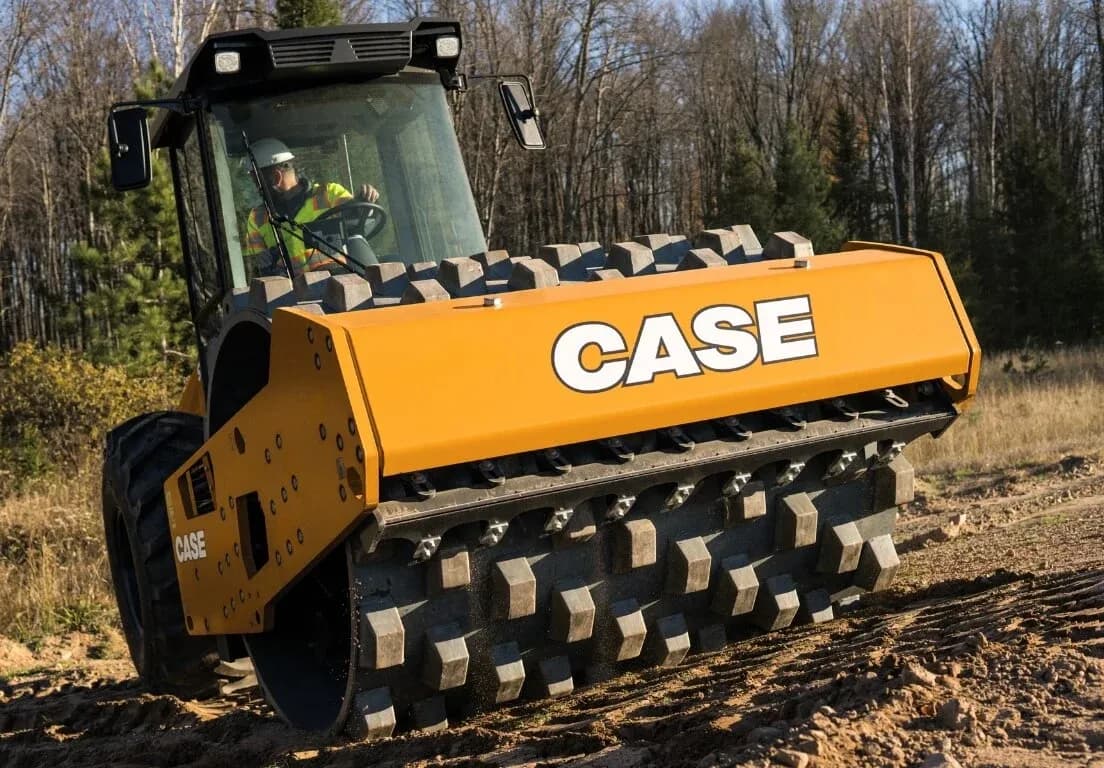

See the SV217E in Action
