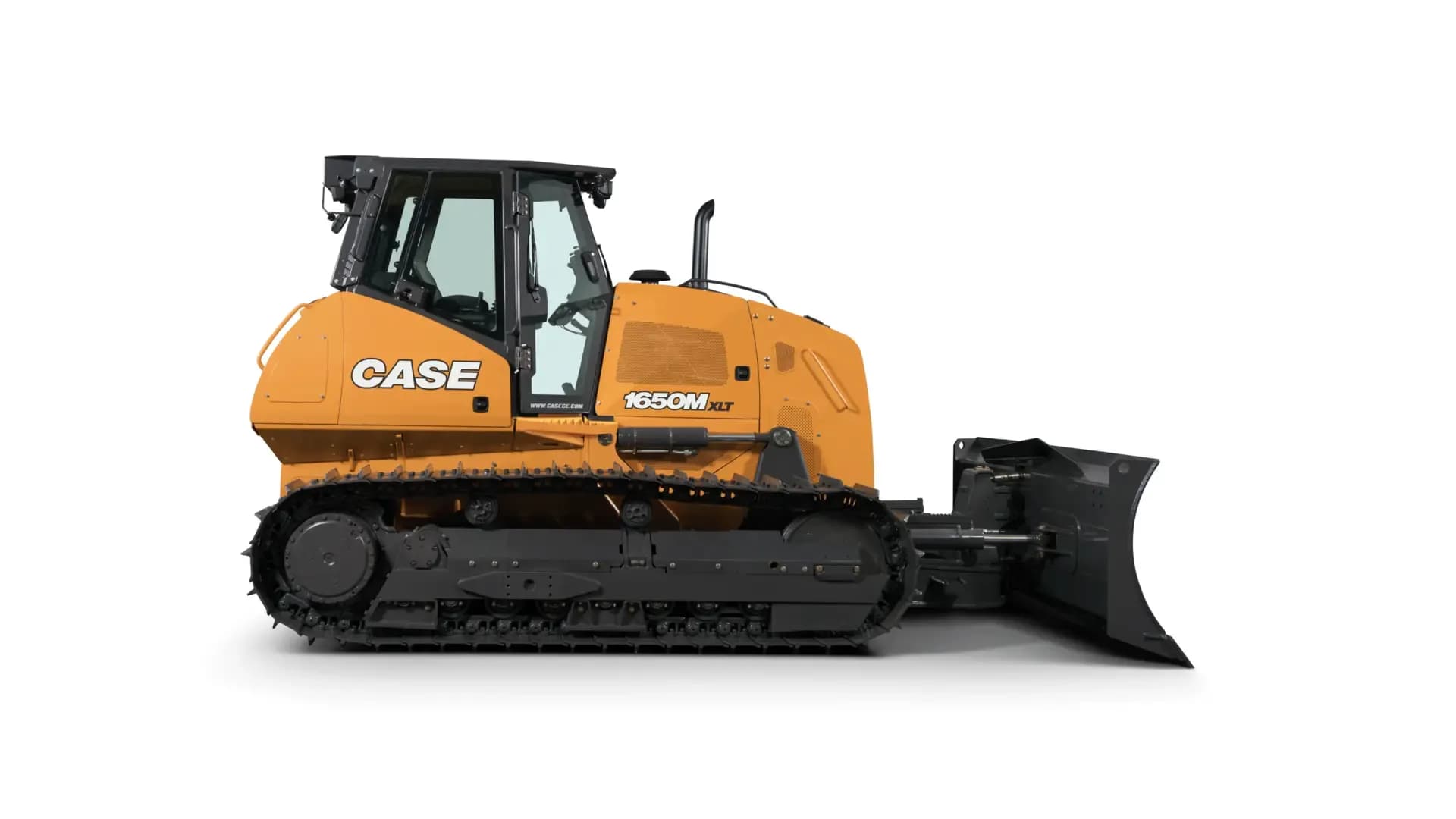

1650M
Push until there's nothing left to push.
The CASE 1650M Dozer is built for heavy dozing and ripping, offering over 61,000 lbs. of drawbar pull and various track and blade configurations to tackle any jobsite.
164 hpHorsepower38,256 lbOperating Weight61,000+ lbDrawbar Pull
Horsepower
164 hp
Operating Weight
38,256 lb
Drawbar Pull
61,000+ lbs.
ProCare Warranty
3-yr/3000-hr
Emissions
Tier 4 Final
Overview
Take a Closer Look
Take a quick tour and get a good look at the features and technology that make the 1650M the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable operator station.
Features
Explore 1650M Features
Specifications
1650M Specs
Specifications
Engine
Horsepower164 hp | 122 kW
EmissionsTier 4 Final Certified
Operating
Operating Weight38,256 lb | 17 353 kg
Drawbar PullOver 61,000 lbs.
Operator Environment
CabFully enclosed ROPS cab
ControlsSingle lever control for speed, steering and direction
SeatCloth air suspension seat w/ back adjustment
Blade
Pitch52° – 60° variable
ControlSingle lever electro-hydraulic
PAT Blade (Optional)130 in (3 302 mm), 156 in (3 974 mm), Foldable 156 in (3 974 mm)
Semi-U Blade (Optional)131 in (3 322 mm)
Undercarriage
Track AdjustersHydraulic
Track ChainSealed and Lubricated Track Chain (SALT)
Rollers & IdlersPermanently lubricated
Rear Mounted Equipment (Optional)
Ripper3 position with 3 shanks, HD Ripper - 6” Tooth
DrawbarDrawbar, Drawbar with step
Precision (Optional)
CoPilotFactory Fit
2D LaserFactory Fit
3D GNSSFactory Fit
Blade Guidance ReadyLeica, Trimble, Topcon
Warranty & Telematics
Full Machine Protection3-yr/3000-hr Factory Warranty
Planned Maintenance3-yr/2000-hr
TelematicsmyCASEConstruction 4G Telematics (7-yr advanced data subscription)
Gallery

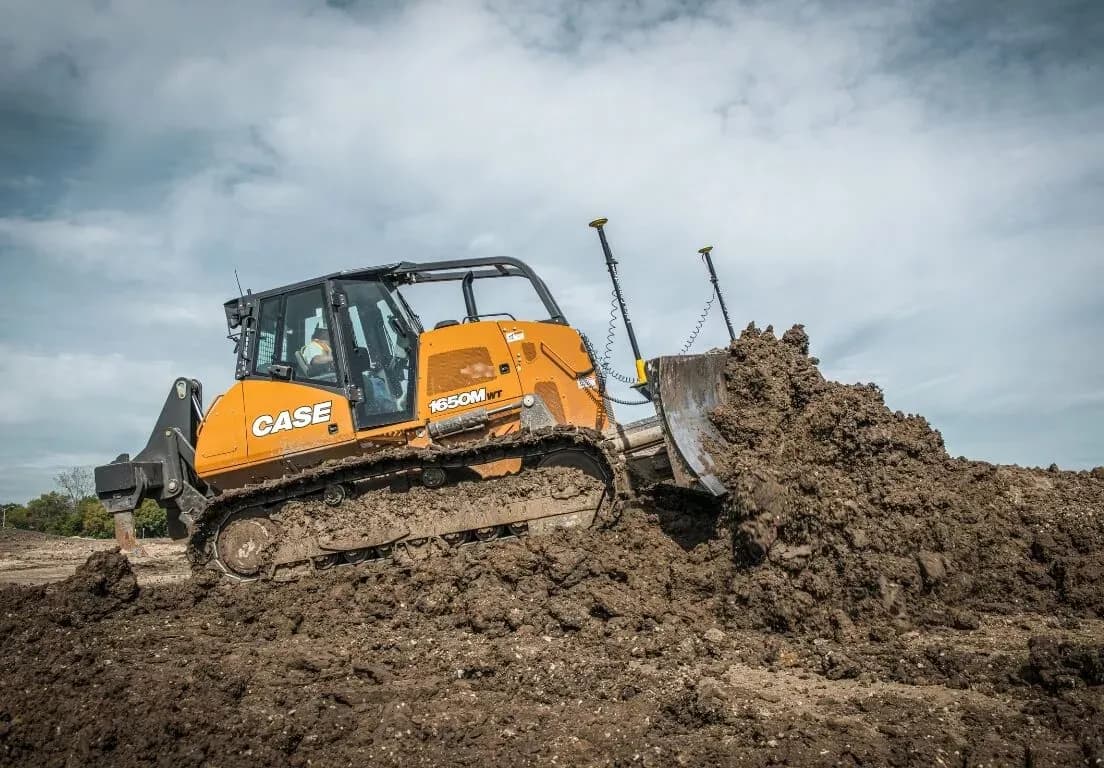

See the 1650M in Action
