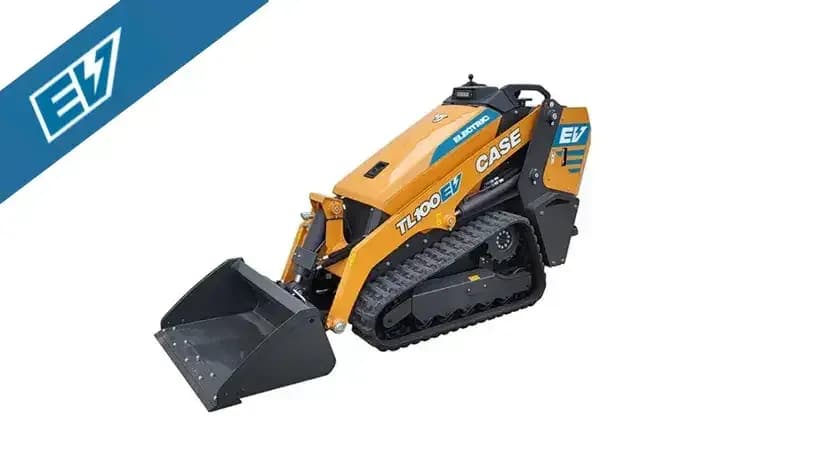

CASE TL100EV
Mini track loader reliability. Work-anywhere electric power.
Electric mini track loader with 102V battery, onboard charger, ~1,000 lb rated operating capacity, and 33.5 hp (25 kW) implement motor.
23.5 kWhBattery102VVoltage989–1,472 lbROC3–7 hrsRun Time
102V Lithium-Ion
23.5 kWh / 21.2 kWh usable
Quiet Operation
Indoor & noise-sensitive work
Zero Emissions
Alternative-fuel contracts
Sonsray Service
30+ service locations
Overview
Work Anywhere. Charge Overnight. Quietly Crush the Day.
- Radial-lift geometry for trenching, grading, and loading work
- 1,405–1,472 lb rated operating capacity (50% of tipping load)
- 2,810–2,945 lb tipping load (narrow / wide track)
- 33.5 hp (25 kW) implement motor with 63.4 ft-lb rated torque
- Dual electric drive motors with regenerative service braking
- 3–7 hour run time depending on application
- 240V onboard charging overnight; optional 480V 3-phase fast charge
- Narrow-track 35 in width squeezes through standard gates and doors
- 2-year / 2,000-hour full machine warranty + 3-year electrical warranty
Features
Explore CASE TL100EV Features
Specifications
CASE TL100EV Specs
Specifications
Electric Powertrain
Nominal Battery Voltage102V
Battery ChemistryLithium Ion
Battery Capacity (Gross / Usable)23.5 kWh / 21.2 kWh
Connector TypeSAE J1772 Type 1 (240V)
Onboard Charging (0–100% / 20–80%)8 hr / 5 hr
Off-Board 240V 1-Phase (0–100% / 20–80%)6 hr / 3.5 hr
Off-Board 208V 3-Phase (0–100% / 20–80%)3 hr / 2 hr
Off-Board 480V 3-Phase (0–100% / 20–80%)2.2 hr / 1.5 hr
Run Time3–7 hrs (application dependent)
Motor TypeInternal Permanent Magnet
Motor Power33.5 hp / 25 kW
Motor Speed (Power / Standard / ECO)2,800 / 2,600 / 2,400 rpm
Traction Motors (2x) — Rated / Peak Power11.3 hp (8.4 kW) / 23.1 hp (17.2 kW)
Traction Motors — Rated / Peak Torque20.4 ft-lb / 35.4 ft-lb
Implement Motor — Rated / Peak Power33.5 hp (25 kW) / 42.9 hp (32 kW)
Implement Motor — Rated / Peak Torque63.4 ft-lb / 92.2 ft-lb
Loader Performance
Lift GeometryRadial Lift
Narrow Track ROC (35% / 50% Tipping)989 lb / 1,405 lb
Narrow Track Tipping Load2,810 lb
Wide Track ROC (35% / 50% Tipping)1,034 lb / 1,472 lb
Wide Track Tipping Load2,945 lb
Drivetrain
Track Motor Nominal Power14.2 hp (10.6 kW) x2
Track Motor Nominal Torque16.6 ft-lb (22.5 Nm) x2
Max Travel Speed (High / Low)5 mph (8 km/h) / 2.5 mph (4 km/h)
Service BrakeRegenerative Electric
Parking BrakeSAHR — Negative Mechanical, Spring on Discs
Hydraulics
Implement Pump TypeFixed Gear
Displacement1.2 in³ (20 cm³)
Standard Flow13.7 gpm (52 L/min)
Loader Control ValveOpen Center
Operating Pressure2,800 psi (190 bar)
Hydraulic System Capacity6.7 gal (25.3 L)
Weight
Operating Weight — Narrow Track (2x Counterweights)3,886 lb / 1,862 kg
Operating Weight — Wide Track (6x Counterweights)4,133 lb / 1,875 kg
Dimensions
Overall Operating Height114.6 in (2,911 mm)
Overall Height56.5 in (1,435 mm)
Overall Length (w/o Bucket)85.6 in (2,175 mm)
Overall Length (w/ Standard Bucket)110.1 in (2,796 mm)
Transport Length85 in (2,155 mm)
Hinge Pin Height86.7 in (2,201 mm)
Dump Height (Standard Bucket)61.0 in (1,549 mm)
Reach at Maximum Dump22.24 in (570 mm)
Ground Clearance8.7 in (222 mm)
Track Length on Ground41.9 in (1,065 mm)
Machine Width — Narrow / Wide35.0 in / 40.4 in
Bucket Width — Narrow / Wide36.0 in / 42.0 in
Dump Angle42°
Max Rollback (Full Height / Ground)90° / 24°
Track & Ground Pressure
7 in (180 mm) Narrow Track — Ground Pressure5.8 psi (0.41 kg/cm²)
10 in (250 mm) Wide Track — Ground Pressure4.4 psi (0.31 kg/cm²)
Warranty
Full Machine2-Year / 2,000-Hour Limited
Electrical Components3-Year / 3,000-Hour Limited Liability
